5. Example graphs

In this notebook, we show the available example graphs from the data module.

5.1. Reeb graphs

These cells generate the examples from the example Reeb graphs module.

[1]:
import cereeberus.data.ex_reebgraphs as ex_rg
import matplotlib.pyplot as plt
[2]:
# The torus graph allows for choices of function values for the four vertices

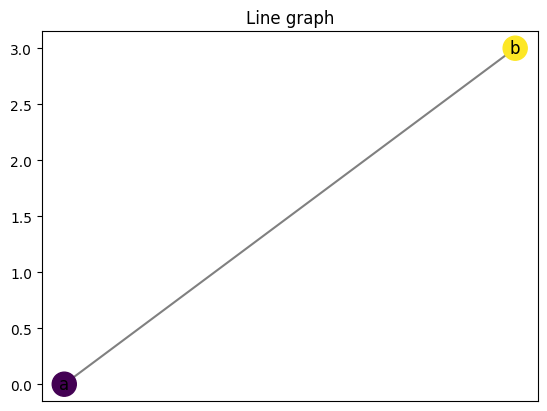

R = ex_rg.line(a = 0, b = 3)
R.draw()
plt.title('Line graph')

plt.savefig('../images/line.png', bbox_inches = 'tight')
../_images/notebooks_example_graphs_2_0.png
[3]:
# The torus graph allows for choices of function values for the four vertices
R = ex_rg.torus(a = 0, b = 2, c = 4, d = 5,
                multigraph = True, seed = 6)
R.draw(cpx = 3)
plt.title('Torus graph - Multigraph')

# plt.savefig('../images/torus.png', bbox_inches = 'tight')
[3]:
Text(0.5, 1.0, 'Torus graph - Multigraph')
../_images/notebooks_example_graphs_3_1.png
[4]:

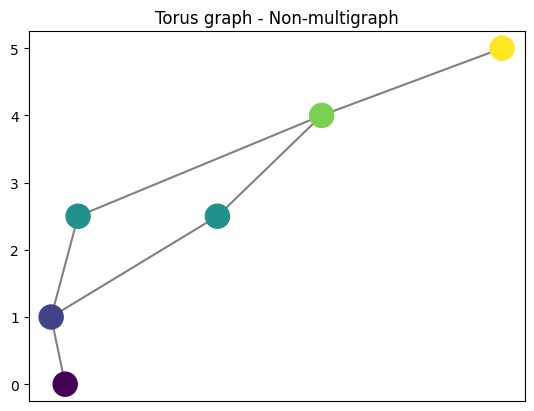

# The torus graph allows for choices of function values for the four vertices
R = ex_rg.torus(a = 0, b = 1, c = 4, d = 5,
                multigraph = False, seed = 6)
R.draw(cpx = 3, with_labels = False)
plt.title('Torus graph - Non-multigraph')

plt.savefig('../images/torus-extraverts.png', bbox_inches = 'tight')
../_images/notebooks_example_graphs_4_0.png
[5]:
R = ex_rg.dancing_man(seed = 0)
R.draw(with_labels = False)
plt.title('Dancing Man')
# plt.savefig('../images/dancing_man.png', bbox_inches = 'tight')
[5]:
Text(0.5, 1.0, 'Dancing Man')
../_images/notebooks_example_graphs_5_1.png
[6]:

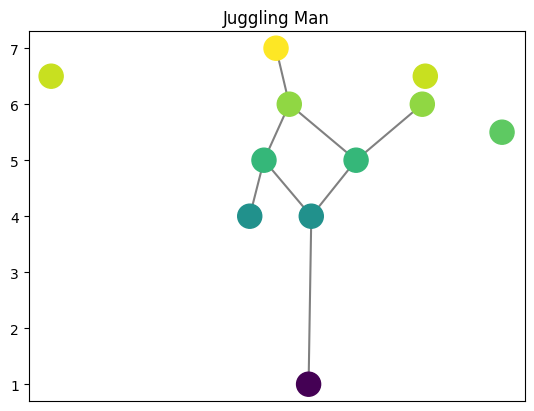

R = ex_rg.juggling_man(seed = 0)
R.draw(with_labels = False)
plt.title('Juggling Man')

# plt.savefig('../images/juggling_man.png', bbox_inches = 'tight')

[6]:
Text(0.5, 1.0, 'Juggling Man')
../_images/notebooks_example_graphs_6_1.png
[7]:

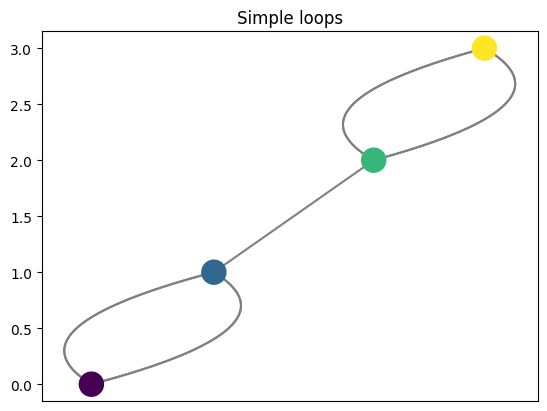

R = ex_rg.simple_loops(seed = 5)

R.draw(with_labels = False, cpx= 1.1)
plt.title('Simple loops')

# plt.savefig('../images/simple_loops.png', bbox_inches = 'tight')
[7]:
Text(0.5, 1.0, 'Simple loops')
../_images/notebooks_example_graphs_7_1.png
[8]:
R = ex_rg.interleave_example_A(seed = 5)

R.draw(with_labels = False, cpx= 1.1)
plt.title('Interleaving example A')

# plt.savefig('../images/interleave_example_A.png', bbox_inches = 'tight')
[8]:
Text(0.5, 1.0, 'Interleaving example A')
../_images/notebooks_example_graphs_8_1.png
[9]:
R = ex_rg.interleave_example_B(seed = 5)

R.draw(with_labels = False, cpx= 1.1)
plt.title('Interleaving example B')

# plt.savefig('../images/interleave_example_B.png', bbox_inches = 'tight')
[9]:
Text(0.5, 1.0, 'Interleaving example B')
../_images/notebooks_example_graphs_9_1.png

5.2. Mapper Graphs

These cells generate the examples from the example mapper graphs module.

[10]:
import cereeberus.data.ex_mappergraphs as ex_mg
import matplotlib.pyplot as plt

[18]:

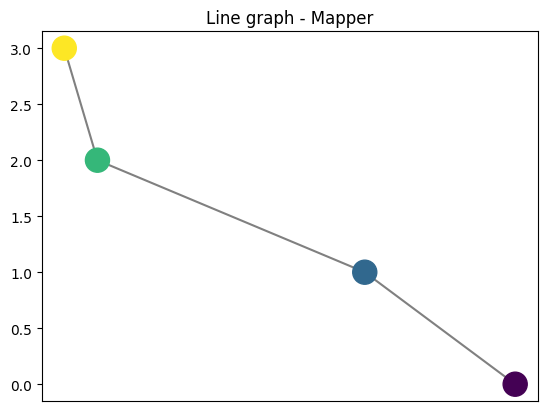

# The line graph allows for choices of function values for the bottom and top vertices
MG = ex_mg.line(a = 0, b = 3)
MG.draw(with_labels = False)
plt.title('Line graph - Mapper')

# plt.savefig('../images/line_mapper.png', bbox_inches = 'tight')
../_images/notebooks_example_graphs_12_0.png
[12]:

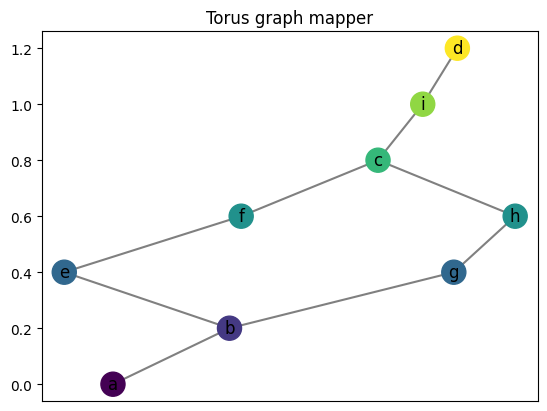

# Note that like the Reeb graph version, the torus mapper graph allows for choices of integer function values for the four vertices
MG = ex_mg.torus(a = 0, b = 1, c = 4, d = 6, delta = .2, seed = 5)

print(f"Delta value is: {MG.delta}")

MG.draw()
plt.title('Torus graph mapper')

# plt.savefig('torus_mapper.png', bbox_inches = 'tight')
Delta value is: 0.2
[12]:
Text(0.5, 1.0, 'Torus graph mapper')
../_images/notebooks_example_graphs_13_2.png
[13]:

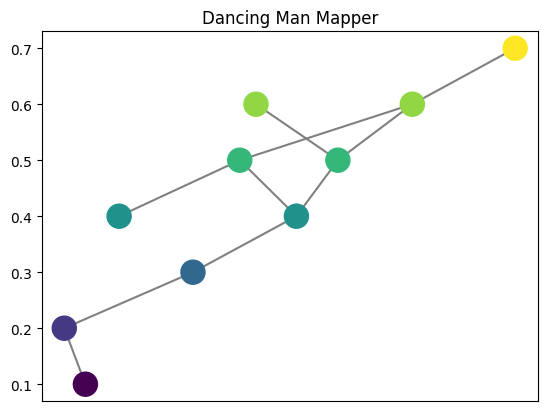

MG = ex_mg.dancing_man(seed = 2)
print(f"Delta value is: {MG.delta}")
MG.draw(with_labels = False)
plt.title('Dancing Man Mapper')
# plt.savefig('dancing_man_mapper.png', bbox_inches = 'tight')
Delta value is: 0.1
[13]:
Text(0.5, 1.0, 'Dancing Man Mapper')
../_images/notebooks_example_graphs_14_2.png
[14]:

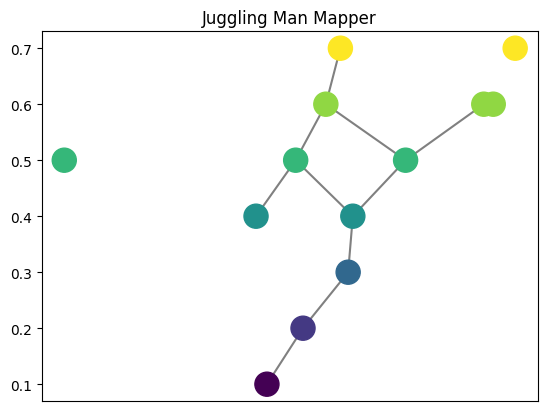

MG = ex_mg.juggling_man(seed = 0)
print(f"Delta value is: {MG.delta}")

MG.draw(with_labels = False)
plt.title('Juggling Man Mapper')

# plt.savefig('juggling_man_mapper.png', bbox_inches = 'tight')

Delta value is: 0.1
[14]:
Text(0.5, 1.0, 'Juggling Man Mapper')
../_images/notebooks_example_graphs_15_2.png
[15]:

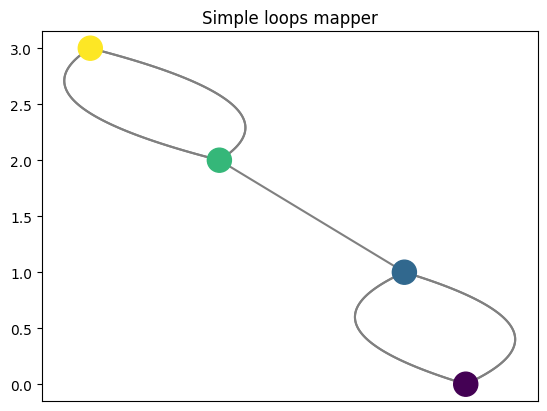

MG = ex_mg.simple_loops(seed = 5)
print(f"Delta value is: {MG.delta}")

MG.draw(with_labels = False, cpx= 1.1)
plt.title('Simple loops mapper')

# plt.savefig('simple_loops_mapper.png', bbox_inches = 'tight')
Delta value is: 1
[15]:
Text(0.5, 1.0, 'Simple loops mapper')
../_images/notebooks_example_graphs_16_2.png
[16]:

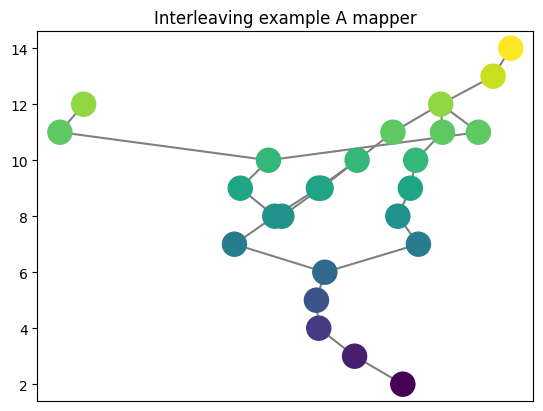

MG = ex_mg.interleave_example_A(seed = 5)
print(f"Delta value is: {MG.delta}")

MG.draw(with_labels = False)
plt.title('Interleaving example A mapper')

# plt.savefig('interleave_example_A_mapper.png', bbox_inches = 'tight')
Delta value is: 1
[16]:
Text(0.5, 1.0, 'Interleaving example A mapper')
../_images/notebooks_example_graphs_17_2.png
[17]:

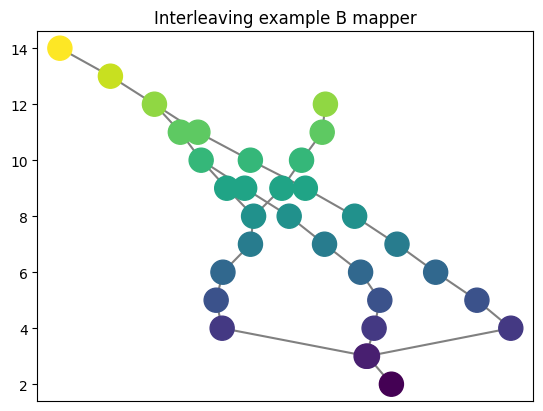

MG = ex_mg.interleave_example_B(seed = 5)
print(f"Delta value is: {MG.delta}")

MG.draw(with_labels = False)
plt.title('Interleaving example B mapper')

# plt.savefig('interleave_example_B_mapper.png', bbox_inches = 'tight')
Delta value is: 1
[17]:
Text(0.5, 1.0, 'Interleaving example B mapper')
../_images/notebooks_example_graphs_18_2.png

5.3. Merge Trees

TODO

[ ]:

5.4. Embedded Graphs

TODO

[ ]:
